Competition Use Only, Not Legal for Road Use

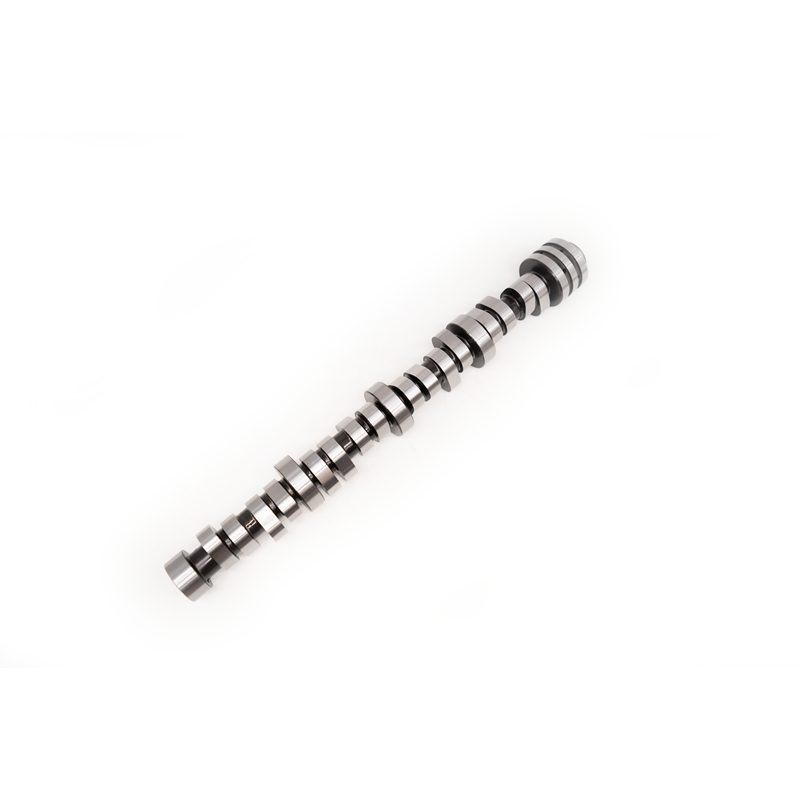

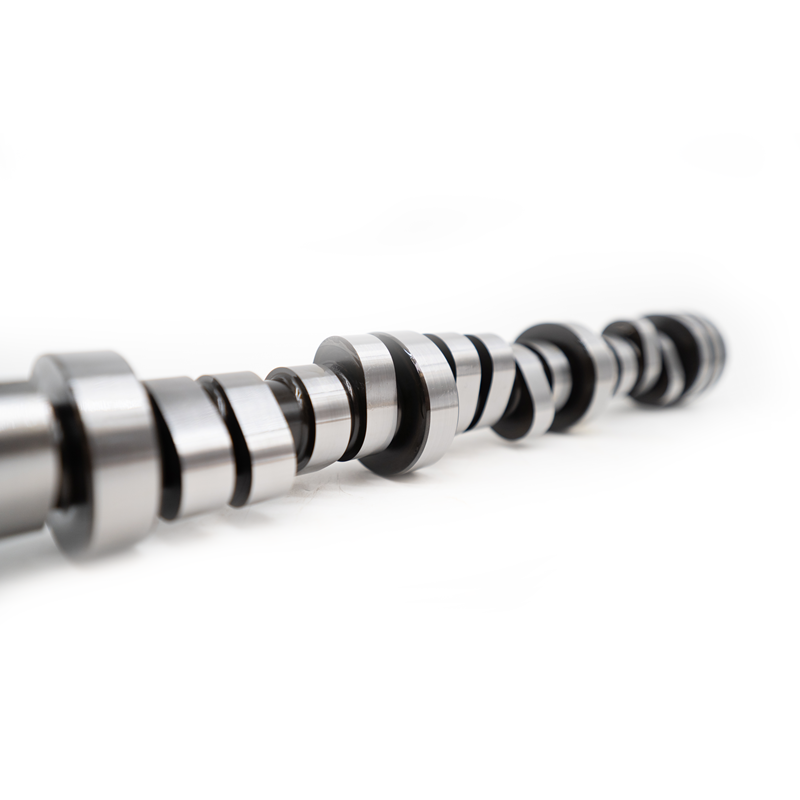

Texas Speed and Performance Gen 3 Hemi Stroker Cam Positive Displacement Superchargers
Unlock the potential of your big cubic inch Hemi engine with the Texas Speed and Performance Hemi Stroker PDS Camshaft. Designed specifically for Gen 3 Hemi engines equipped with positive displacement superchargers (i.e., Factory Hellcat, Whipple, Magnuson), this camshaft is engineered to deliver optimal performance and power gains.
Camshaft Specifications
- Duration @ .050” (Intake/Exhaust): 235°/253°
- Lift (Intake/Exhaust): .622"/.618"
- LSA: 118°
- ICL: 114°
- *** VCT Lockout is Required to Run this Camshaft ***
Engine Compatibility
- Engines Best Suited For: 2009+ Gen 3 Hemi Stroker 410+ Cubic Inch
Performance Highlights
- Power: Varies depending on application
- Operating RPM Range: 1000-7200 RPM (max)
- Drivability: Street/Strip
Required Components
- Valve Springs: PAC-1232X or PRC-VS2226 springs required
- Pushrods: TSP 3/8 Pushrods required
- Pistons: Aftermarket pistons with valve reliefs required
Recommended Components
- Retainers: TSP titanium retainers
- Rocker Braces: TSP rocker shaft braces recommended
- Stall Converter: 3200+ stall converter recommended
- Rear Gear: Gear selection varies depending on application
