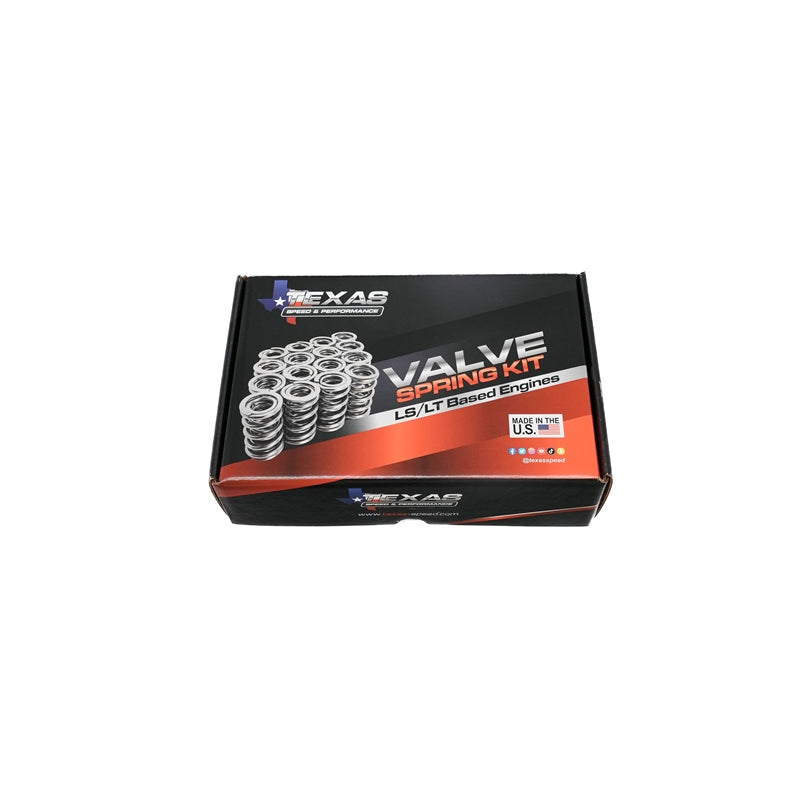

TSP LT1/L83 .585” Lift Beehive Valve Spring Set
The TSP .585” Beehive Valve Spring Set is the perfect drop-in upgrade for Gen V LT engines running low-lift camshafts. Specifically designed to pair with TSP LTx low lift camshafts, these springs offer excellent control, durability, and ease of installation — all while retaining your factory valve seats, retainers, and locks.
Compatibility:
-
Engine Fitment: Gen V LT1, L83, L84, L86, and L87 cylinder heads
-
Cam Compatibility: Designed for TSP LTx low lift camshafts
-
OEM Hardware Friendly: Works with factory valve seats, retainers, and locks
Spring Specifications:
-
Maximum Lift: .585”
-
Installed Height: 1.900"
-
Seat Pressure: 100 lbs @ 1.900”
-
Open Pressure: 332 lbs @ .585” lift
-
Coil Bind: 1.196"
Spring Dimensions:
-
Base Outside Diameter: 1.310"
-
Base Inside Diameter: 0.924"
-
Top Outside Diameter: 1.036"
-
Top Inside Diameter: 0.650"
If you're upgrading your LT engine with a low-lift cam and want to retain your factory valvetrain components, the TSP LT1/L83 Beehive Valve Springs offer the perfect balance of performance, longevity, and drop-in convenience.
