Nick Williams 120 mm Drive‑By‑Wire Throttle Body – Black Anodized
The Nick Williams 120 mm Drive‑By‑Wire Throttle Body is precision CNC‑machined from billet aluminum to meet the demands of high‑flow, supercharged Gen V LS/LT performance engines. Featuring a full electronics package, it’s engineered for aggressive power setups and smooth throttle response.
Designed for aftermarket intake systems—such as builds using the Magnuson 2650 supercharger—this throttle body includes a snout adapter and is not a direct bolt-on for stock manifolds. Each unit is fully assembled and ships with all required bolts.
Key Features:
-

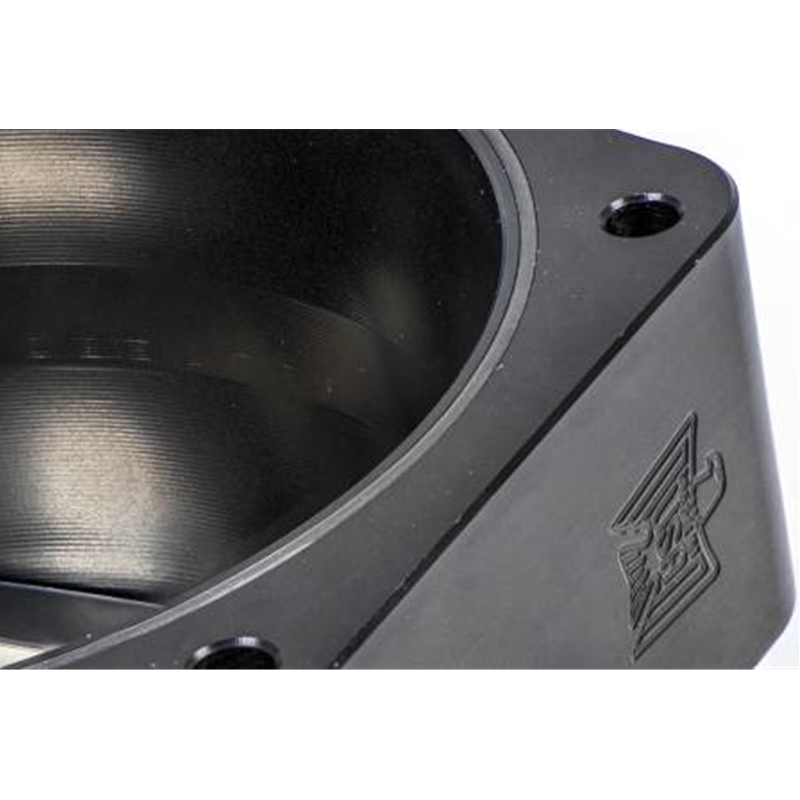

Bore Size: 120 mm, optimized for high-flow installs
-

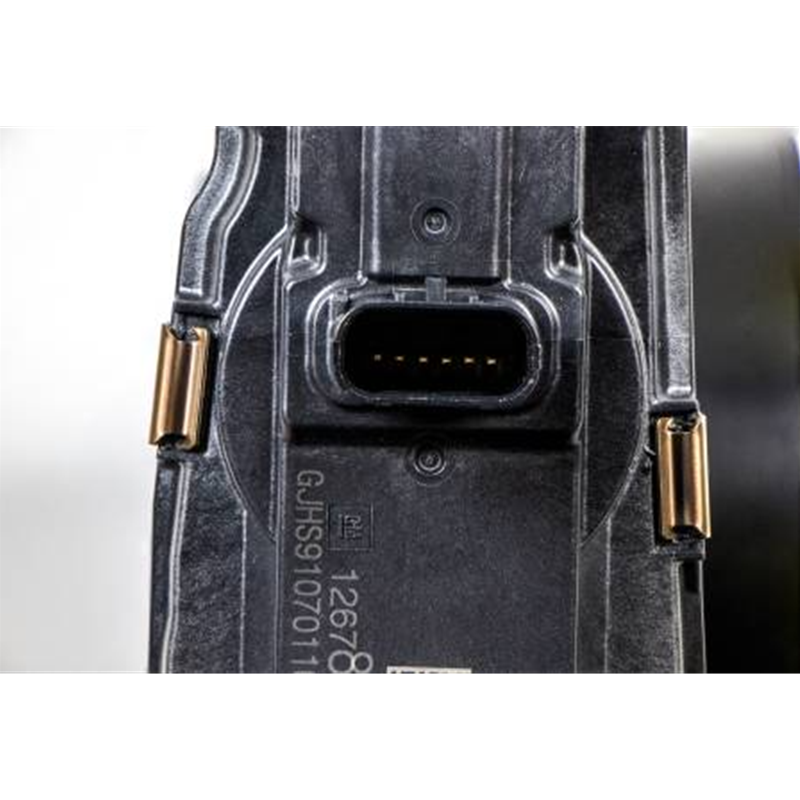

Connector: 6-pin late-model DBW harness compatible
-

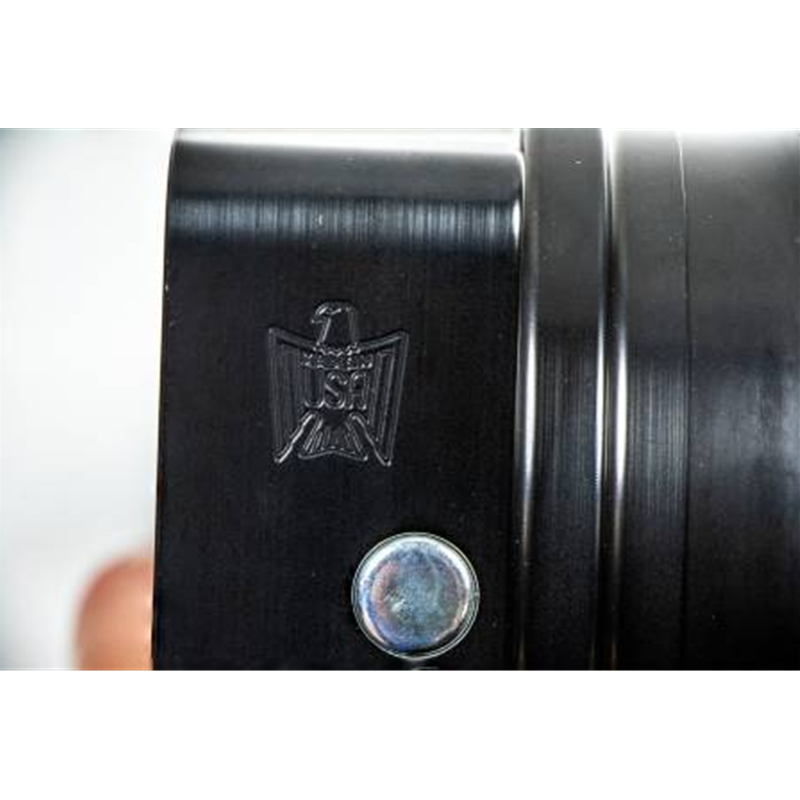

Material & Finish: Billet aluminum, black anodized finish
-

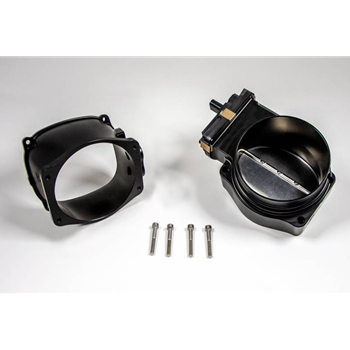

Included: Snout adapter (for Gen V supercharged setups), mounting bolts, fully assembled electronics
-
Application: Ideal for boosted Gen V LS/LT builds with aftermarket intake—tuning required
Compatibility:
• Gen V LT engines (e.g., C7 Corvette, Gen6 Camaro, CTS‑V) with Magnuson 2650
• LSX applications with 120 mm inlet manifolds (e.g., Whipple supercharged Hellcat builds)
Pricing & Availability:
-
In Stock: Ships in 1–2 business days
-
Weight: ~4.7 lb
-
Box Dimensions: 13″ × 7″ × 6.5″
⚠️ Note: This is intended for non-emissions or race applications—**not CARB-legal**. Installation requires tuning and an aftermarket intake manifold; not a plug-and-play solution for stock setups.
